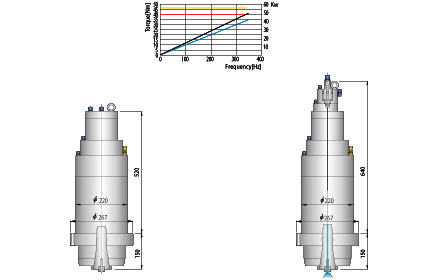

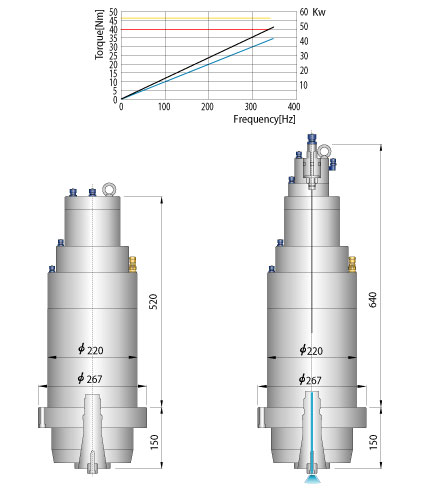

| MODEL |
|
KF-6 |
KF-6-T |
| Steel brg + greased |
min-1 |
6,500 |
6,500 |
| Ceramic brg + greased |
min-1 |
8,000 |
8,000 |
| Ceramic brg + Oil-Air Lubrication |
min-1 |
10,000 |
10,000 |
| Power |
Kw |
45 |
45 |
| Voltage |
V |
380 |
380 |
| Pole |
P |
4 |
4 |
| Tooling System |
|
BT40, HSK100 |
BT40, HSK100 |
| Weight |
Kg |
150 |
150 |
| Tool change pressure |
Kg/㎠ |
50 |
50 |
| Torque |
Nm |
|
|
| Tool release |
|
HY(Booster) |
HY(Booster) |
| Encoder |
Pulse |
|
|
| Internal Coolant Supply |
|
|
TSC Type |
| Application |
|
Mook-up
금형가공
고속가공 |
Mook-up
금형가공
고속가공 |
|
