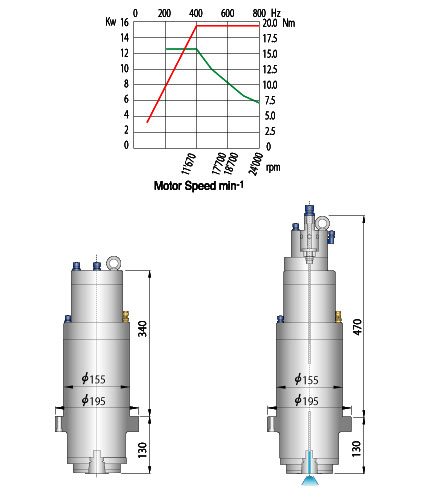

| MODEL |
|
KF-4 |
KF-4-T |
| Steel brg + greased |
min-1 |
12,000 |
12,000 |
| Ceramic brg + greased |
min-1 |
18,000 |
18,000 |
| Ceramic brg + Oil-Air Lubrication |
min-1 |
25,000 |
24,000 |
| Power |
Kw |
15.2 |
15.2 |
| Voltage |
V |
380 |
380 |
| Pole |
P |
4 |
4 |
| Tooling System |
|
BT40, HSK50E |
BT40, HSK50E |
| Weight |
Kg |
47 |
47 |
| Tool change pressure |
Kg/㎠ |
40 |
40 |
| Torque |
Nm |
|
|
| Tool release |
|
HY(Booster) |
HY(Booster) |
| Encoder |
Pulse |
|
|
| Internal Coolant Supply |
|
|
TSC Type |
| Application |
|
Mook-up, 금형가공, 고속가공 |
Mook-up, 금형가공, 고속가공 |
|
