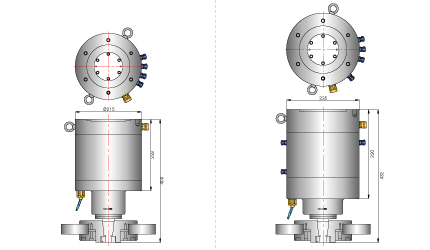

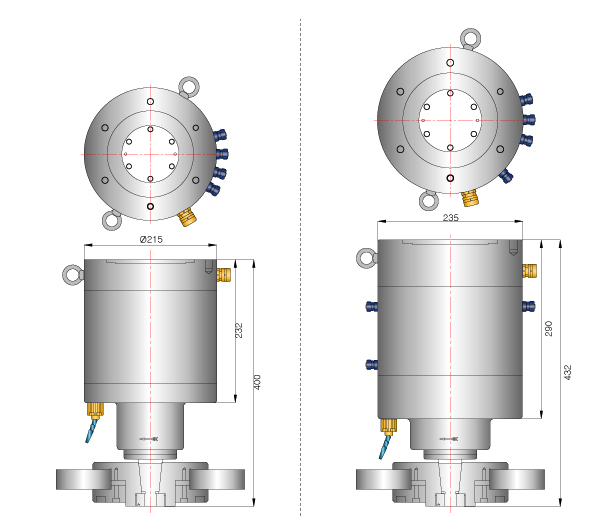

Click to see larger image.
MODEL   KPC-300 KPC-500
Steel brg + greased min-1 3600 / 1800 3600 / 1800
Ceramic brg + greased min-1
Ceramic brg + Oil-Air Lubrication min-1
Power Kw 2.2 3.7
Voltage V 220 / 380 220 / 380
Pole P 2 / 4 2 / 4
Tooling System
Weight Kg
Tool change pressure Kg/Р L : 50 L : 50
Torque Nm    100    100
Tool release      150    150
Encoder Pulse    200    200
Internal Coolant Supply
Application   Grinding M/C Grinding M/C
